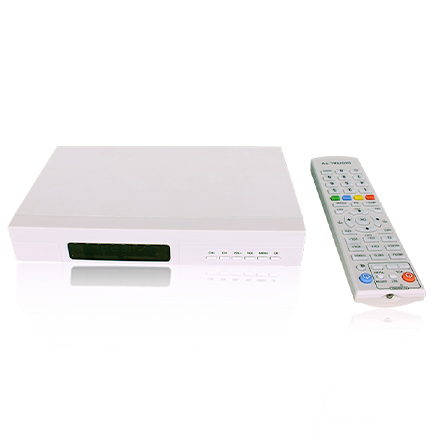

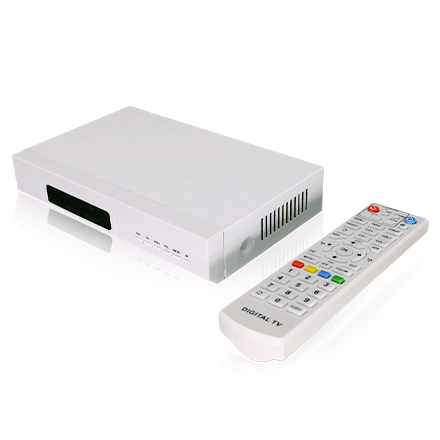

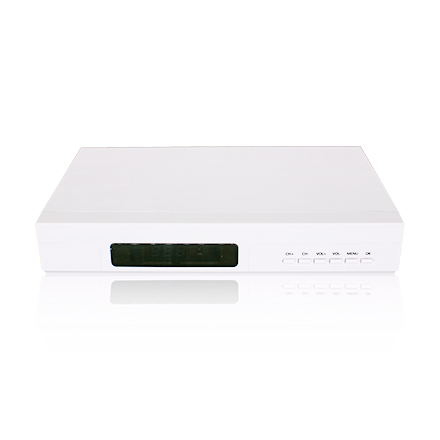

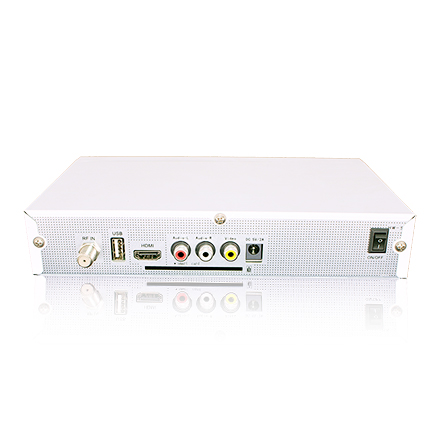

Set Top Box DVB-C annex A/C THS-9100M
型號:THS-9100M
●HD DVB-C(ETSI EN 300 429/ITU J.83 Annex A/C) set top box compliant with MPEG2 and MPEG4 H.264 and H.265 and AVS+
●Compatible with HDTV channels and equipped with HDMI connector
●EPG & DVB Teletext & DVB Subtitles
●Auto search & Blind search & network search function
●Support Media Player
●Support Dexin CAS 5.7 or Dexin COB2.0
在線咨詢
產品詳情 技術參數 資料下載

Specification

●HD DVB-C(ETSI EN 300 429/ITU J.83 Annex A/C) set top box compliant with MPEG2 and MPEG4 H.264 and H.265 and AVS+

●Compatible with HDTV channels and equipped with HDMI connector

●EPG & DVB Teletext & DVB Subtitles

●Auto search & Blind search & network search function

●Support Media Player

●Support Dexin CAS 5.7 or Dexin COB2.0


Technical Specifications
Core System
Processor : M88CC600OT/M88CC8201T(High-performance dual MIPS CPU)
Broadcast tuners: 1DVB-C
Memory: 8MB Flash
               SOC Embedded 128MB DDR
STB upgrade: Through OTA or USB Disk

Connectivity

Video: HDMl v1.4a

RCA out(CVBS,Audio LR)

uSB: 1xUSB2.0 host device

Tuner & Demodulator
-lnput Frequency:50MHz-860MHz
-Damadulator: 256,128,64,32 and 16QAM demodulation supported
-Symbol rates:0.45~8.5MBauds

Front panel
Display: 3 LED lndicator
Power Red LEDLock Green LED
Button: vOL+, VOL-, CH+, CH-,Menu, OK

Video Decoding

●H.264 BP(with noASO/FMO),MP& HP@L3L4.1

●HEVC/H.265 MP@level 4.0 High tier (M88C S8051T only )

●MPEG-2 MP@MLHL

●AVS Jizhun profile@L6.0/L4.0.

●AVS Broadcast profile@L6.0/L4.0

●MPEG-4 SP Profile,Advanced Simple Profile@ Level 5 without GMC/Data Partitioning/Reversible vLc

●Xvid1.3.2 without GMC and Divx without GMc

●H.263 bas eline profile

Setup environment
-Function temperature: 0-40 degree Celsius

-Power consumption: Max 10w
-Voltage: 12V/1A

Proposed Accessories

-Remote control unit
-RCA Connect Cable Or HDMIl Cable

-AAA Size Batteries

Audio Decoding

MPEG-1/2 Layer MIII
MPEG-2/4 LC-AAC MPEG-4 HE-AAC@Level 4

Dolby AC3IAC3+ (optional)

Dimensions
W x H x D(mm): 220*143*43

Weight(kg):0.6
Packaging dimension(mm): 240*205*50

Weight include packaging(kg): 0.7



Core System
Processor : M88CC600OT/M88CC8201T(High-performance dual MIPS CPU)
Broadcast tuners: 1DVB-C
Memory: 8MB Flash
               SOC Embedded 128MB DDR
STB upgrade: Through OTA or USB Disk

Connectivity

Video: HDMl v1.4a

RCA out(CVBS,Audio LR)

uSB: 1xUSB2.0 host device

Tuner & Demodulator
-lnput Frequency:50MHz-860MHz
-Damadulator: 256,128,64,32 and 16QAM demodulation supported
-Symbol rates:0.45~8.5MBauds

Front panel
Display: 3 LED lndicator
Power Red LEDLock Green LED
Button: vOL+, VOL-, CH+, CH-,Menu, OK

Video Decoding

●H.264 BP(with noASO/FMO),MP& HP@L3L4.1

●HEVC/H.265 MP@level 4.0 High tier (M88C S8051T only )

●MPEG-2 MP@MLHL

●AVS Jizhun profile@L6.0/L4.0.

●AVS Broadcast profile@L6.0/L4.0

●MPEG-4 SP Profile,Advanced Simple Profile@ Level 5 without GMC/Data Partitioning/Reversible vLc

●Xvid1.3.2 without GMC and Divx without GMc

●H.263 bas eline profile

Setup environment
-Function temperature: 0-40 degree Celsius

-Power consumption: Max 10w
-Voltage: 12V/1A

Proposed Accessories

-Remote control unit
-RCA Connect Cable Or HDMIl Cable

-AAA Size Batteries

Audio Decoding

MPEG-1/2 Layer MIII
MPEG-2/4 L.C.AAC MPEG-4 HEAAC@Level 4

Dolby AC3IAC3+ (optional)

Dimensions
W x H x D(mm): 220*143*43

Weight(kg):0.6
Packaging dimension(mm): 240*205*50

Weight include packaging(kg): 0.7
