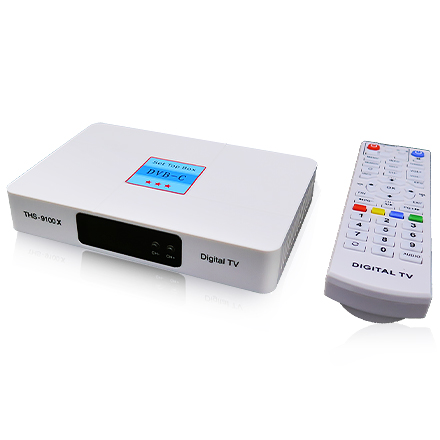

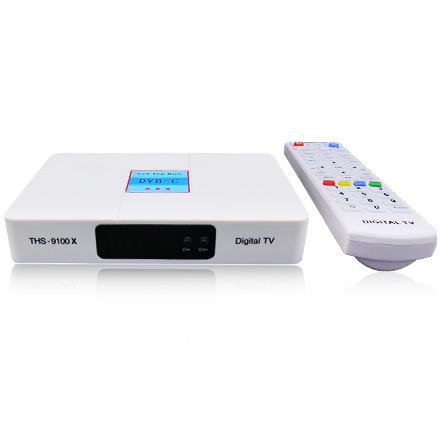

Set Top Box DVB-C Annex B THS-9100X
型號:THS-9100X
● HD DVB-C(ETSI EN 300 429/ITU J.83 Annex A/B/C) set top box compliant with MPEG2 and MPEG4 H.264
● Compatible with HDTV channels and equipped with HDMI connector
● EPG & DVB Teletext & DVB Subtitles
● Auto search & Blind search & network search function
● Support Media Player
● Support Dexin CAS 5.7 or Dexin COB2.0
在線咨詢
產品詳情 技術參數 資料下載

◆ Specification

● HD DVB-C(ETSI EN 300 429/ITU J.83 Annex A/B/C) set top box compliant with MPEG2 and MPEG4 H.264

● Compatible with HDTV channels and equipped with HDMI connector

● EPG & DVB Teletext & DVB Subtitles

● Auto search & Blind search & network search function

● Support Media Player

● Support Dexin CAS 5.7 or Dexin COB2.0



◆ Technical Specifications

Core System

● Processor : M88CS8001S/T/M88CS8051T (High-performance dual MIPS CPU)

● Broadcast tuners: 1 DVB-C

● Memory: 8MBFlash

                   SOC Embedded 64MB or 128MB DDR

● STB upgrade: Through OTA or USB Disk


Connectivity

● Video: HDMI v1.4a

● RCA out(CVBS, Audio L/R)

● USB: 1xUSB2.0 host device


Tuner & Demodulator

● Input Frequency: 50MHz-860MHz

● Demodulator: 256,128,64,32 and 16QAM

                          demodulation supported

● Symbol rates: 0.45~8.5MBauds


Front panel

● Display:  3 LED Indicator

                  Power Red LED

                     Lock Green LED

● Button:  CH+, CH-


Video Decoding

● H.264 BP(with no ASO/FMO),MP& HP@L3/L4.1

● HEVC/H.265 MP@level 4.0 High tier (M88CS8051T only )

● MPEG-2 MP@ML/HL

● AVS Jizhun profile@L6.0/L4.0

● AVS Broadcast profile@L6.0/L4.0

● MPEG-4 SP Profile,Advanced Simple Profile@ Level 5 without GMC/Data Partitioning/Reversible VLC

● Xvid 1.3.2 without GMC and DivX without GMC

● H.263 baseline profile


Setup environment

● Function temperature:0-40 degree Celsius

● Power consumption: Max 10w

● Voltage: 12V/1A


Proposed Accessories

● Remote control unit

● RCA Connect Cable Or HDMI Cable

● AAA Size Batteries


Audio Decoding

● MPEG-1/2 Layer MI/IIl

● MPEG-2/4 LC-AAC, MPEG-4 HE-AAC@Level 4

● Dolby AC3/AC3+(optional)

● DRA 2 CH/5.1 CH(optional)


Dimensions

● Wx Dx H(mm): 165*120*30

● Weight(kg): 0.55

● Packaging dimension(mm): 245*165*52

● Weight include packaging(kg): 0.6


Core System

● Processor : M88CS8001S/T/M88CS8051T (High-performance dual MIPS CPU)

● Broadcast tuners: 1 DVB-C

● Memory: 8MBFlash

                   SOC Embedded 64MB or 128MB DDR

● STB upgrade: Through OTA or USB Disk


Connectivity

● Video: HDMI v1.4a

● RCA out(CVBS, Audio L/R)

● USB: 1xUSB2.0 host device


Tuner & Demodulator

● Input Frequency: 50MHz-860MHz

● Demodulator: 256,128,64,32 and 16QAM

                          demodulation supported

● Symbol rates: 0.45~8.5MBauds


Front panel

● Display:  3 LED Indicator

                  Power Red LED

                     Lock Green LED

● Button:  CH+, CH-


Video Decoding

● H.264 BP(with no ASO/FMO),MP& HP@L3/L4.1

● HEVC/H.265 MP@level 4.0 High tier (M88CS8051T only )

● MPEG-2 MP@ML/HL

● AVS Jizhun profile@L6.0/L4.0

● AVS Broadcast profile@L6.0/L4.0

● MPEG-4 SP Profile,Advanced Simple Profile@ Level 5 without GMC/Data Partitioning/Reversible VLC

● Xvid 1.3.2 without GMC and DivX without GMC

● H.263 baseline profile


Setup environment

● Function temperature:0-40 degree Celsius

● Power consumption: Max 10w

● Voltage: 12V/1A


Proposed Accessories

● Remote control unit

● RCA Connect Cable Or HDMI Cable

● AAA Size Batteries


Audio Decoding

● MPEG-1/2 Layer MI/IIl

● MPEG-2/4 LC-AAC, MPEG-4 HE-AAC@Level 4

● Dolby AC3/AC3+(optional)

● DRA 2 CH/5.1 CH(optional)


Dimensions

● Wx Dx H(mm): 165*120*30

● Weight(kg): 0.55

● Packaging dimension(mm): 245*165*52

● Weight include packaging(kg): 0.6
