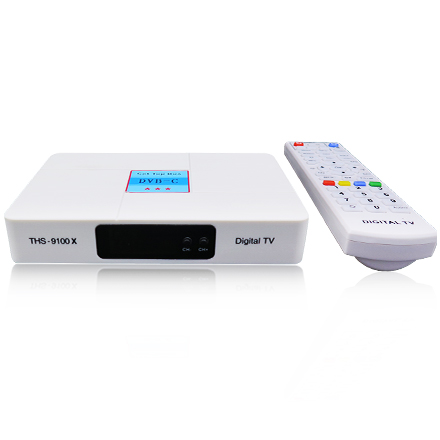

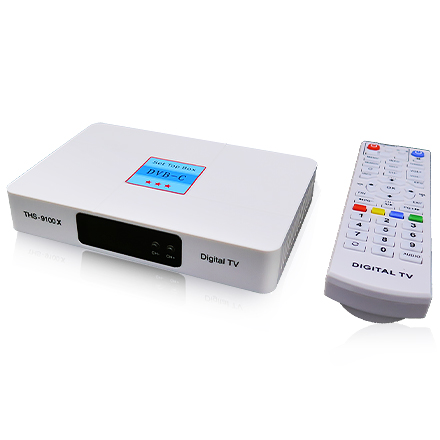

Set Top Box DVB-C annex A/C THS-9100X
型號:THS-9100X
●HD DVB-C(ETSI EN 300 429/ITU J.83 Annex A/C) set top box compliant with MPEG2 and MPEG4 H.264 and H.265 and AVS+
●Compatible with HDTV channels and equipped with HDMI connector
●EPG & DVB Teletext & DVB Subtitles
●Auto search & Blind search & network search function
●Support Media Player
●Support Dexin CAS 5.7 or Dexin COB2.0
在線咨詢
產品詳情 技術參數 資料下載

◆Specification

●HD DVB-C(ETSI EN 300 429/ITU J.83 Annex A/C) set top box compliant with MPEG2 and MPEG4 H.264 and H.265 and AVS+

●Compatible with HDTV channels and equipped with HDMI connector

●EPG & DVB Teletext & DVB Subtitles

●Auto search & Blind search & network search function

●Support Media Player

●Support Dexin CAS 5.7 or Dexin COB2.0


Technical Specifications
Core System
Processor : M88Cc6000T/M88CC8201T
                   (High-performance dual MIPS CPU)
Broadcast tuners: 1 DVB-C
Memory: 8MB Flash SOC Embedded 128MB DDR
STB up grade: Through OTA or USB Disk

Connectivity
Video: HDMl v1.4a
 RCA out (CVBs, Audio L/R)

USB: 1xUSB2.0 host device

Tuner & Demodulator
-lnput Frequency :50MHz-860MHz

-Demadulator: 256,128,64,32 and 16QAM demodulation supported
-Symbol rates: 0.45~8.5MBauds

Front panel
-Display: 3 LED Indicator, Power Red LED, Lock Green LED
-Button:CH+,CH-

Video Decoding

●H.264 BP(with noASO/FMO),MP& HP@L3/L4.1

●HEVC/H.265 MP@level 4.0 High tier (M88CS8051T only )

●MPEG-2MP@MLHL

●AVS Jizhun profile@L6.0L4.0

●AVS Broadcast profile@L6.0/L4.0

●MPEG-4 SP Profile,Advanced Simple Profile@ Level 5 without GMC/Data Partitioning/Reversible vLc

●Xvid 1.3.2 without GMC and Dixwithout GMc

●H.263 baseline profile

Setup environment
Function temperature: 0-40 degree Celsius

Power consumption: Max 10w
Voltage: 12V/1A

Proposed Accessories

Remote control unit
RCA Connect Cable Or HDMIl Cable

AAA Size Batteries

Audio Decoding

MPEG-1/2 Layer MIIII

MPEG-2/4 LC-AAC, MPEG-4 HEAAC@Level 4

Dolby AC3/AC3+ (optional)

Dimensions
W x H x D(mm): 165*120*30

Weight(kg):0.55
Packaging dimension(mm): 245*165*52

Weight include packaging(kg):0.6

Core System
Processor : M88Cc6000T/M88CC8201T
                   (High-performance dual MIPS CPU)
Broadcast tuners: 1 DVB-C
Memory: 8MB Flash SOC Embedded 128MB DDR
STB up grade: Through OTA or USB Disk

Connectivity
Video: HDMl v1.4a
 RCA out (CVBs, Audio L/R)

USB: 1xUSB2.0 host device

Tuner & Demodulator
-lnput Frequency :50MHz-860MHz

-Demadulator: 256,128,64,32 and 16QAM demodulation supported
-Symbol rates: 0.45~8.5MBauds

Front panel
-Display: 3 LED Indicator, Power Red LED, Lock Green LED
-Button:CH+,CH-

Video Decoding

●H.264 BP(with noASO/FMO),MP& HP@L3/L4.1

●HEVC/H.265 MP@level 4.0 High tier (M88CS8051T only )

●MPEG-2MP@MLHL

●AVS Jizhun profile@L6.0L4.0

●AVS Broadcast profile@L6.0/L4.0

●MPEG-4 SP Profile,Advanced Simple Profile@ Level 5 without GMC/Data Partitioning/Reversible VLS

●Xvid 1.3.2 without GMC and Dixwithout GMc

●H.263 baseline profile

Setup environment
Function temperature: 0-40 degree Celsius

Power consumption: Max 10w
Voltage: 12V/1A

Proposed Accessories

Remote control unit
RCA Connect Cable Or HDMIl Cable

AAA Size Batteries

Audio Decoding

MPEG-1/2 Layer I/II/III

MPEG-2/4 LC-AAC, MPEG-4 HE-AAC@Level 4

Dolby AC3/AC3+ (optional)

Dimensions
W x H x D(mm): 165*120*30

Weight(kg):0.55
Packaging dimension(mm): 245*165*52

Weight include packaging(kg):0.6
