◆Specification
●DVB-S2/S set top box compliant with MPEG2 and MPEG4 and H.264 and H.265 and AVS
●Compatible with HDTV channels and equipped with HDMI connector
●EPG & DVB Teletext & DVB Subtitles
●Auto search & Blind search & network search function
●Support Media Player
●Support CAS or FTA
Technical Specifications
Core System
Processor : M88CS8001S/M88CS8001T/M88CS8051T (High-performance dual MIPS CPU)
Broadcasttuners: 1 DVB-S2
Memory: 8MB Flash
SOC Embedded 64MB or 128MB DDR
STB up grade: Through OTA or USB Disk

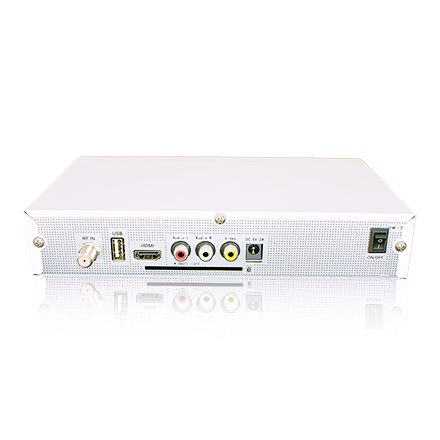

Connectivity
Video:HDMl v1.4a
RCA out (CVBS, AudioL/R)
USB: 1xUSB2.0 host device
Tuner & Demodulator
Input Frequency: 950MHz-2150MHz
LNB Power: 13V/18v
Demodulator QPSK,8PSK,16APSK&32APSK
Symbol rate: 1.0~-45MSps

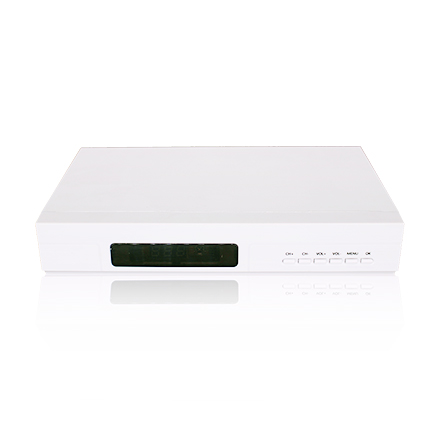

Front panel
Display: 3LED lndicator, Power Red LED, Lock Green LED
Button:VOL+, VOL-, CH+，CH-, Menu, OK
Video Decodin
-MPEG4 Simple Profile,Advanced Simple Profile @Level 5 without GMC/Data Partitioning/Reversible VLC
-HEVC/H.265 MP@level 4.0 High tier (M88C S8051T only )
-MPEG-2 MP@HL
-AVS Jizhun profile @L6.0/4.0/2.0
-AvS Broadcast profile @ L6.0/L4.0
-H.264 BP(with no ASO/FMO)，MP& HP@L4.1
Setup environmen
Function temperature:0-40 degree Celsius
Power consumption: Max 10w
Voltage: 12V/1A
Audio Decoding
MPEG-1/2 Layer I/II/III
MPEG-2/4 LC-AAC, MPEG-4 HE-AAC@Level 4
Dolby AC3I/AC3+(Optional)
Dimensions
W x D x H(mm): 220*143*43
Weight(kg):0.6
Packaging dimension(mm):240*205*50
Weight include packaging(kg):0.7
HD/SD Video Encodin
HD formats : 480p, 576p, 720p,1080i/p
SD formats:NTSC 480i,PAL 576i including VBl function

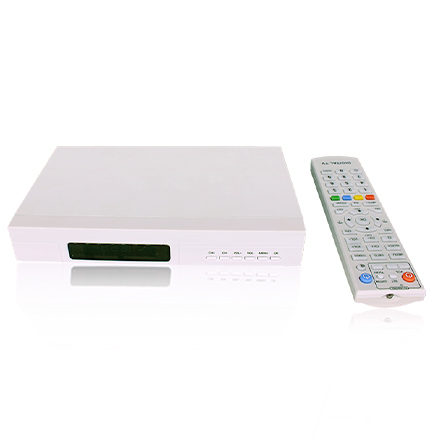

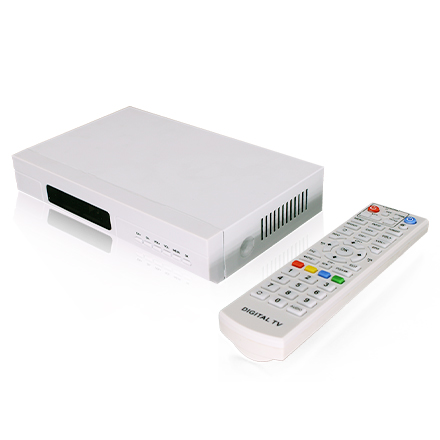

Proposed Accessories
Remote control unit
RCA Connect Cable OR AAA Batteries
AAA Size Batteries
Core System
Processor : M88CS8001S/M88CS8001T/M88CS8051T (High-performance dual MIPS CPU)
Broadcasttuners: 1 DVB-S2
Memory: 8MB Flash
SOC Embedded 64MB or 128MB DDR
STB up grade: Through OTA or USB Disk
Connectivity
Video:HDMl v1.4a
RCA out (CVBS, AudioL/R)
USB: 1xUSB2.0 host device
Tuner & Demodulator
Input Frequency: 950MHz-2150MHz
LNB Power: 13V/18v
Demodulator QPSK,8PSK,16APSK&32APSK
Symbol rate: 1.0~-45MSps
Front panel
Display: 3LED lndicator, Power Red LED, Lock Green LED
Button:VOL+, VOL-, CH+，CH-, Menu, OK
Video Decodin
-MPEG4 Simple Profile,Advanced Simple Profile @Level 5 without GMC/Data Partitioning/Reversible VLC
-HEVC/H.265 MP@level 4.0 High tier (M88C S8051T only )
-MPEG-2 MP@HL
-AVS Jizhun profile @L6.0/4.0/2.0
-AvS Broadcast profile @ L6.0/L4.0
-H.264 BP(with no ASO/FMO)，MP& HP@L4.1
Setup environmen
Function temperature:0-40 degree Celsius
Power consumption: Max 10w
Voltage: 12V/1A
Audio Decoding
MPEG-1/2 Layer I/II/III
MPEG-2/4 LC-AAC, MPEG-4 HE-AAC@Level 4
Dolby AC3I/AC3+(Optional)
Dimensions
W x D x H(mm): 220*143*43
Weight(kg):0.6
Packaging dimension(mm):240*205*50
Weight include packaging(kg):0.7
HD/SD Video Encodin
HD formats : 480p, 576p, 720p,1080i/p
SD formats:NTSC 480i,PAL 576i including VBl function
Proposed Accessories
Remote control unit
RCA Connect Cable OR AAA Batteries
AAA Size Batteries
