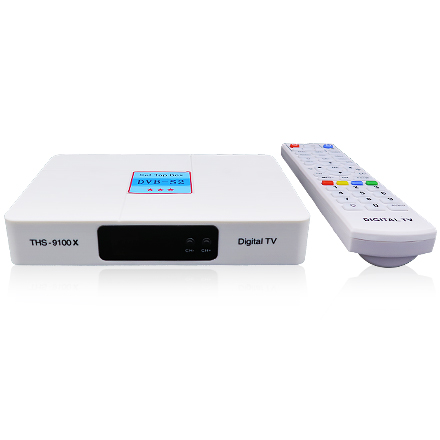

Set Top Box DVB-S2/S THS-9100X
型號:THS-9100X
●DVB-S2/S set top box compliant with MPEG2 and MPEG4 and H.264 and H.265 and AVS
●Compatible with HDTV channels and equipped with HDMI connector
●EPG & DVB Teletext & DVB Subtitles
●Auto search & Blind search & network search function
●Support Media Player
●Support CAS or FTA
在線咨詢
產品詳情 技術參數 資料下載

Specification

DVB-S2/S set top box compliant with MPEG2 and MPEG4 and H.264 and H.265 and AVS

Compatible with HDTV channels and equipped with HDMI connector

EPG & DVB Teletext & DVB Subtitles

Auto search & Blind search & network search function

Support Media Player

Support  CAS or FTA


Technical Specifications

Core System
Processor : M88cs8001S/M88Cs8001T /M88cs8051T (High-performance dual MIPS CPu)
Broadcasttuners: 1 DVB-S2
Memory: 8MB Flash SOC Embedded 64MB or 128MB DDR
STB up grade: Through OTA or USB Disk

Connectivity

Video: HDMl v1.4a
RCA out (CVBS, AudioL/R)

USB: 1xUSB2.0 host device

Tuner & Demodulator
lnput Frequency: 950MHz-2150MHz
LNB Power: 13V/18v
Demodulator QPSK,8PSK,16APSK&32APSK

Symbol rate : 1.0~45MSps

Front panel

Display: 3 LED lndicator, Power Red LED, Lock Green LED

Button: CH+,CH-

Video Decoding
MPEG4 Simple Profile,Advanced Simple Profile @Level 5 without GMC/Data Partitioning/Reversible VLC

HEVC/H.265 MP@level 4.0 High tier (M88C S8051T only )

MPEG-2 MP@HL

AVS Jizhun profile @ L6.0/4.0/2.0-

AVS Broadcast profile @L6.0/L4.0

H.264 BP(with no ASO/FMO),MP& HP@ L4.1

Setup environment
Function temperature:0-40 degree Celsius

Power consumption: Max 10w
Voltage: 12V/1A

Audio Decoding

MPEG-1/2 Layer I/II/III
MPEG-2/4 LC-AAC, MPEG-4 HE-AAC@Level 4

Dolby AC3/AC3+(Optional)

Dimensions
W x D x H(mm):165*120*30

Weight(kg):0.55
Packaging dimension(mm):245*165*52

Weight include packaging(kg):0.6

HDISD Video Encoding
HD formats : 480p, 576p, 720p,1080i/p.

SD formats: NTSC 480i,PAL 576i including VBl function

Proposed Accessories

Remote control unit
RCA Connect Cable OR AAA Batteries

AAA Size Batteries

Core System
Processor : M88cs8001S/M88Cs8001T /M88cs8051T (High-performance dual MIPS CPu)
Broadcasttuners: 1 DVB-S2
Memory: 8MB Flash SOC Embedded 64MB or 128MB DDR
STB up grade: Through OTA or USB Disk

Connectivity

Video: HDMl v1.4a
RCA out (CVBS, AudioL/R)

USB: 1xUSB2.0 host device

Tuner & Demodulator
lnput Frequency: 950MHz-2150MHz
LNB Power: 13V/18v
Demodulator QPSK,8PSK,16APSK&32APSK

Symbol rate : 1.0~45MSps

Front panel

Display: 3 LED lndicator, Power Red LED, Lock Green LED

Button: CH+,CH-

Video Decoding
MPEG4 Simple Profile,Advanced Simple Profile @Level 5 without GMC/Data Partitioning/Reversible VLC

HEVC/H.265 MP@level 4.0 High tier (M88C S8051T only )

MPEG-2 MP@HL

AVS Jizhun profile @ L6.0/4.0/2.0-

AVS Broadcast profile @L6.0/L4.0

H.264 BP(with no ASO/FMO),MP& HP@ L4.1

Setup environment
Function temperature:0-40 degree Celsius

Power consumption: Max 10w
Voltage: 12V/1A

Audio Decoding

MPEG-1/2 Layer I/II/III
MPEG-2/4 LC-AAC, MPEG-4 HE-AAC@Level 4

Dolby AC3/AC3+(Optional)

Dimensions
W x D x H(mm):165*120*30

Weight(kg):0.55
Packaging dimension(mm):245*165*52

Weight include packaging(kg):0.6

HDISD Video Encoding
HD formats : 480p, 576p, 720p,1080i/p.

SD formats: NTSC 480i,PAL 576i including VBl function

Proposed Accessories

Remote control unit
RCA Connect Cable OR AAA Batteries

AAA Size Batteries
