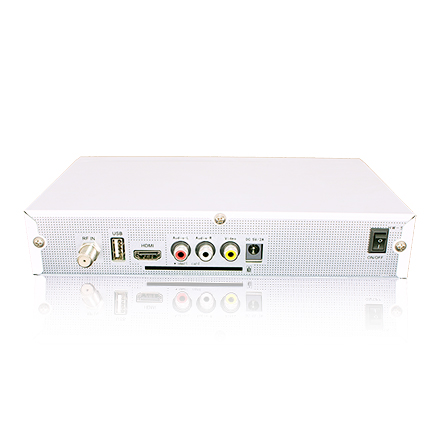

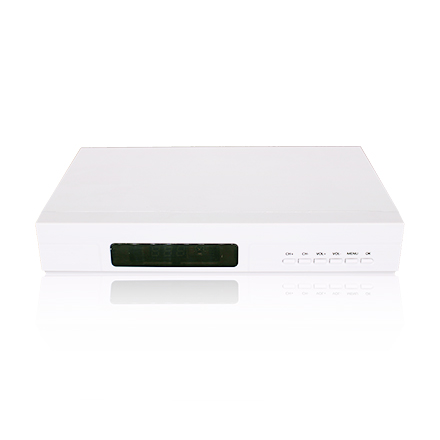

Set Top Box ISDB-T THS-9100M
型號:THS-9100M
●set top box compliant with MPEG2 , MPEG4, H.264 ,H.265 and AVS
●Compatible with HDTV channels and equipped with HDMI connector
●Supported 7-Day EPG function, VBI Teletext
●Auto search & Blind search & network search function
●Support Media Player?
●Support CAS or FTA
在線咨詢
產品詳情 技術參數 資料下載

Specification

●set top box compliant with MPEG2 , MPEG4, H.264 ,H.265 and AVS

●Compatible with HDTV channels and equipped with HDMI connector

●Supported 7-Day EPG function, VBI Teletext

●Auto search & Blind search & network search function

●Support Media Player

●Support CAS or FTA

Technical Specifications

Core System
Processor : M88cS8001S/M88cs8001T/M88CS8051T

Broadcast tuners: Si2141
Memory: 4MB/8MB Flash/64MB/128MB RAM DDR2
STB up grade:Through OTA or USB Disk

Connectivity

Video: HDMl v1.4a
RCA out (CVBS,Audio L/R)

USB: 1xUSB2.0 host device

Tuner & Demodulator
-Input Frequency:47MHz-860MHz
-Demodulator: Partial reception supported

-Channel bandwidth: 6M,7M,8MHz

Front panel
- Display: 3 LED lndicator, Power Red LED, Lock Green LED
- Button: VOL+, VOL-, CH+,CH-, Menu, OK

Video Decoding
MPEG4 Simple Profile,Advanced Simple Profile @Level 5 without GMC/Data Partitioning/Reversible VLC

- HEVC/H.265 MP@level 4.0 High tier (M88C S8051T only )

- MPEG-2 MP@HL

- AVS Jizhun profile @ L6.0/4.0/2.0

- AVS Broadcast profile @ L6.0/L4.0

- H.264 BP(with no ASO/FMO),MP& HP@L4.1

Setup environment
Function temperature:0-40 degree CelsiusPower consumption: Max 10w
Voltage:12V/1A

Audio Decoding

MPEG-1/2 Layer I/II/III

MPEG-2/4 LC-AAC,MPEG-4 HE-AAC@Level 4

Dolby AC3/AC3+(Optional)

Dimensions
W x H x D(mm): 220*143*43

Weight(kg):0.6
Packaging dimension(mm): 240*205*50

Weight include packaging(kg):0.7

HD/SD Video Encoding
- HD formats: 480p,576p, 720p,1080i/p
- SD formats: NTSC/PAL/SECAM with VBl slicer

Proposed Accessories

Remote control unit

RCA Connect Cable

HDMl Cable
2*7# Batteries

Core System
Processor : M88cS8001S/M88cs8001T/M88CS8051T

Broadcast tuners: Si2141
Memory: 4MB/8MB Flash/64MB/128MB RAM DDR2
STB up grade:Through OTA or USB Disk

Connectivity

Video: HDMl v1.4a
RCA out (CVBS,Audio L/R)

USB: 1xUSB2.0 host device

Tuner & Demodulator
-Input Frequency:47MHz-860MHz
-Demodulator: Partial reception supported

-Channel bandwidth: 6M,7M,8MHz

Front panel
- Display: 3 LED lndicator, Power Red LED, Lock Green LED
- Button: VOL+, VOL-, CH+,CH-, Menu, OK

Video Decoding
MPEG4 Simple Profile,Advanced Simple Profile @Level 5 without GMC/Data Partitioning/Reversible VLC

- HEVC/H.265 MP@level 4.0 High tier (M88C S8051T only )

- MPEG-2 MP@HL

- AVS Jizhun profile @ L6.0/4.0/2.0

- AVS Broadcast profile @ L6.0/L4.0

- H.264 BP(with no ASO/FMO),MP& HP@L4.1

Setup environment
Function temperature:0-40 degree CelsiusPower consumption: Max 10w
Voltage:12V/1A

Audio Decoding

MPEG-1/2 Layer I/II/III

MPEG-2/4 LC-AAC,MPEG-4 HE-AAC@Level 4

Dolby AC3/AC3+(Optional)

Dimensions
W x H x D(mm): 220*143*43

Weight(kg):0.6
Packaging dimension(mm): 240*205*50

Weight include packaging(kg):0.7

HD/SD Video Encoding
- HD formats: 480p,576p, 720p,1080i/p
- SD formats: NTSC/PAL/SECAM with VBl slicer

Proposed Accessories

Remote control unit

RCA Connect Cable

HDMl Cable
2*7# Batteries
