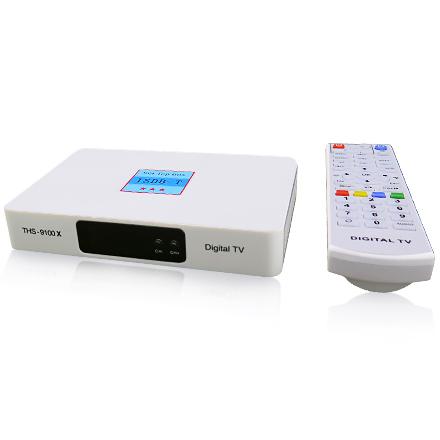

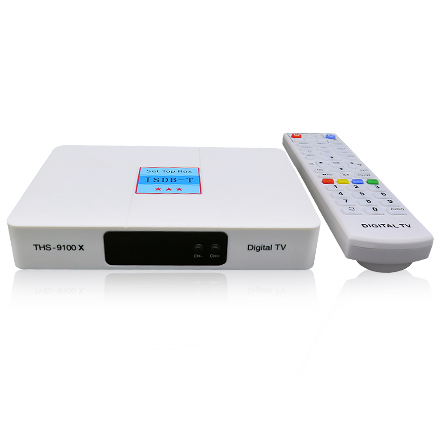

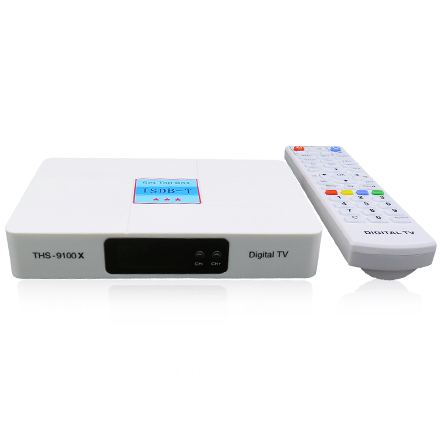

Set Top Box ISDB-T THS-9100X
型號:THS-9100X
●Set top box compliant with MPEG2 , MPEG4, H.264 ,H.265 and AVS
●Compatible with HDTV channels and equipped with HDMI connector
●Supported 7-Day EPG function, VBI Teletext
●Auto search & Blind search & network search function
●Support Media Player
●Support CAS or FTA
在線咨詢
產品詳情 技術參數 資料下載

Specification

●set top box compliant with MPEG2 , MPEG4, H.264 ,H.265 and AVS

●Compatible with HDTV channels and equipped with HDMI connector

●Supported 7-Day EPG function, VBI Teletext

●Auto search & Blind search & network search function

●Support Media Player

●Support CAS or FTA


Technical Specifications

Core System
Processor : M88CS8001S/M88cs8001T/M88cs8051T

Broadcasttuners: Si2141
Memory: 4MB/8MB Flash/64MB/128MB RAM DDR2
STB up grade: Through OTA or USB Disk

Connectivity

Video:HDMI v1.4a
RCA out (CVBS, Audio LR)

USB:1xUSB2.0 host device

Tuner & Demodulator
Input Frequency: 47MHz-860MHz
Demodulator Partial reception supported

Channel bandwidth: 6M,7M,8MHz

Front panel
Display:3 LED lndicator, Power Red LED, Lock Green LED

- Button: CH+,CH-

Video Decodin

MPEG4 Simple Profile, Advanced Simple Profile @Level 5 without GMC/Data Partitioning/Reversible VLC

HEVC/H.265 MP@level 4.0 High tier (M88CS8051T only )

MPEG-2 MP@HL

AVS Jizhun profile @ L6.0/4.0/2.0

AVS Broadcast profile @ L6.0/L4.0

H.264 BP (with no ASO/FMO), MP& HP@ L4.1

Setup environment
Function temperature:0-40 degree Celsius

Power consumption: Max 10w

Voltage: 12V/1A

Audio Decoding

- MPEG-1/2 Layer I/II/III
- MPEG-2/4 LC-AAG, MPEG-4 HE-AAC@Level 4

- Dolby AC3/AC3+(Optional)

Dimensions
W x H x D(mm): 168*115*30

Weight(kg):0.5
Packaging dimension(mm):250*170*55

Weight include packaging(kg):0.55

HD/SD Video Encoding
-HD formats: 480p,576p, 720p,1080i/p
-SD formats: NTSC/PAL/SECAM with VBl slicer

Proposed Accessories

Remote control unit
RCA Connect Cable

HDMl Cable
2*7# Batteries

Core System
Processor : M88CS8001S/M88cs8001T/M88cs8051T

Broadcasttuners: Si2141
Memory: 4MB/8MB Flash/64MB/128MB RAM DDR2
STB up grade: Through OTA or USB Disk

Connectivity

Video:HDMI v1.4a
RCA out (CVBS, Audio LR)

USB:1xUSB2.0 host device

Tuner & Demodulator
Input Frequency: 47MHz-860MHz
Demodulator Partial reception supported

Channel bandwidth: 6M,7M,8MHz

Front panel
Display:3 LED lndicator, Power Red LED, Lock Green LED

- Button: CH+,CH-

Video Decodin

MPEG4 Simple Profile, Advanced Simple Profile @Level 5 without GMC/Data Partitioning/Reversible VLC

HEVC/H.265 MP@level 4.0 High tier (M88CS8051T only )

MPEG-2 MP@HL

AVS Jizhun profile @ L6.0/4.0/2.0

AVS Broadcast profile @ L6.0/L4.0

H.264 BP (with no ASO/FMO), MP& HP@ L4.1

Setup environment
Function temperature:0-40 degree Celsius

Power consumption: Max 10w

Voltage: 12V/1A

Audio Decoding

- MPEG-1/2 Layer I/II/III
- MPEG-2/4 LC-AAG, MPEG-4 HE-AAC@Level 4

- Dolby AC3/AC3+(Optional)

Dimensions
W x H x D(mm): 168*115*30

Weight(kg):0.5
Packaging dimension(mm):250*170*55

Weight include packaging(kg):0.55

HD/SD Video Encoding
-HD formats: 480p,576p, 720p,1080i/p
-SD formats: NTSC/PAL/SECAM with VBl slicer

Proposed Accessories

Remote control unit
RCA Connect Cable

HDMl Cable
2*7# Batteries
