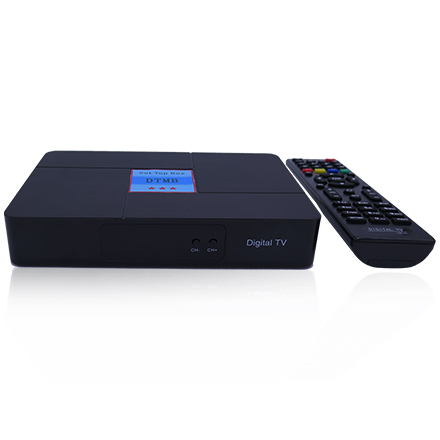

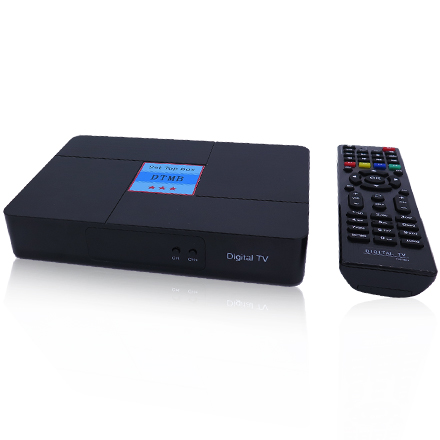

Set Top Box DTMB 9100X
型號:9100X
?●DTMB-Tset top box compliant with MPEG2 and MPEG4 and H.264 and H.265 and AVS
?●Compatible with HDTV channels and equipped with HDMI connector
●EPG & DVB Teletext & DVB Subtitles
●Auto search & Blind search & network search function
●Support Media Player
●Support Dexin CAS
在線咨詢
產品詳情 技術參數 資料下載

Specification

●DTMB-Tset top box compliant with MPEG2 and MPEG4 and H.264 and H.265 and AVS

●Compatible with HDTV channels and equipped with HDMI connector

●EPG & DVB Teletext & DVB Subtitles

●Auto search & Blind search & network search function

●Support Media Player

●Support Dexin CAS

Technical Specifications

Core System
Processor : M88cs8001T /M88cs8051T (High-performance dual MIPS CPU)
Broadcasttuners: 1 DTMB

Memory:8MB Flash SOC Embedded 128MB DDR
STB up grade: Through OTA or USB Disk

Connectivity

Video:HDMl v1.4a
RCA out (CVBS,Audio L/R)

USB: 1xUSB2.0 host device

Tuner & Demodulato

- Input Frequency: 50MHz-860MHz

- Demodulator: QPSK, 16QAM, 64QAM, 256QAM demodulationsupported

- Channel bandwidth: 5M,6M,7M, 8MHz

Front panel
-Display: 3 LED lndicator, Power Red LEDLock Green LED
-Button: CH+,CH-

Video Decodin

- MPEG4 Simple Profile,Advanced Simple Profile @Level 5 without GMC/Data Partitioning/Reversible VLC

- HEVC/H.265 MP@level 4.0 High tier (M88CS8051T only )

- MPEG-2 MP@HL

- AVS Jizhun profile @ L6.0/4.0/2.0

- AVS Broadcast profile @ L6.0/L4.0

- H.264 BP(with noASO/FMO), MP& HP@L4.1

Setup environment
Function temperature:0-40 degree Celsius

Power consumption: Max 10w
Voltage:12V/1A

Audio Decoding

MPEG-1/2 Layer l/II/III
MPEG-2/4 LC-AAC, MPEG-4 HE-AAC@Level 4

Dolby AC3/AC3+(Optional)

Dimensions
W x D x H(mm):165*120*30

Weight(kg):0.55
Packaging dimension(mm):245*165*52

Weight include packagingkg):0.6

HD/SD Video Encoding
HD formats: 480p,576p, 720p,1080i/p
SD formats: NTSC/PAL/SECAM with VBl slicer

Proposed Accessories

-Remote control unit
-RCA Connect Cable OR AAA Batteries


Core System
Processor : M88cs8001T /M88cs8051T (High-performance dual MIPS CPU)
Broadcasttuners: 1 DTMB

Memory:8MB Flash SOC Embedded 128MB DDR
STB up grade: Through OTA or USB Disk

Connectivity

Video:HDMl v1.4a
RCA out (CVBS,Audio L/R)

USB: 1xUSB2.0 host device

Tuner & Demodulato

- Input Frequency: 50MHz-860MHz

- Demodulator: QPSK, 16QAM, 64QAM, 256QAM demodulationsupported

- Channel bandwidth: 5M,6M,7M, 8MHz

Front panel
-Display: 3 LED lndicator, Power Red LEDLock Green LED
-Button: CH+,CH-

Video Decodin

- MPEG4 Simple Profile,Advanced Simple Profile @Level 5 without GMC/Data Partitioning/Reversible VLC

- HEVC/H.265 MP@level 4.0 High tier (M88CS8051T only )

- MPEG-2 MP@HL

- AVS Jizhun profile @ L6.0/4.0/2.0

- AVS Broadcast profile @ L6.0/L4.0

- H.264 BP(with noASO/FMO), MP& HP@L4.1

Setup environment
Function temperature:0-40 degree Celsius

Power consumption: Max 10w
Voltage:12V/1A

Audio Decoding

MPEG-1/2 Layer l/II/III
MPEG-2/4 LC-AAC, MPEG-4 HE-AAC@Level 4

Dolby AC3/AC3+(Optional)

Dimensions
W x D x H(mm):165*120*30

Weight(kg):0.55
Packaging dimension(mm):245*165*52

Weight include packagingkg):0.6

HD/SD Video Encoding
HD formats: 480p,576p, 720p,1080i/p
SD formats: NTSC/PAL/SECAM with VBl slicer

Proposed Accessories

-Remote control unit
-RCA Connect Cable OR AAA Batteries
