Specification
●DVB-S2/S set top box compliant with MPEG2 and MPEG4 and H.264 and H.265 and AVS
●Compatible with HDTV channels and equipped with HDMI connector
●EPG & DVB Teletext & DVB Subtitles
●Auto search & Blind search & network search function
●Support Media Player
●Support CAS or FTA
Technical Specifications
Core System
Processor : M88cs8001S/M88Cs8001T /M88cs8051T (High-performance dual MIPS CPu)
Broadcasttuners: 1 DVB-S2
Memory: 8MB Flash SOC Embedded 64MB or 128MB DDR
STB up grade: Through OTA or USB Disk

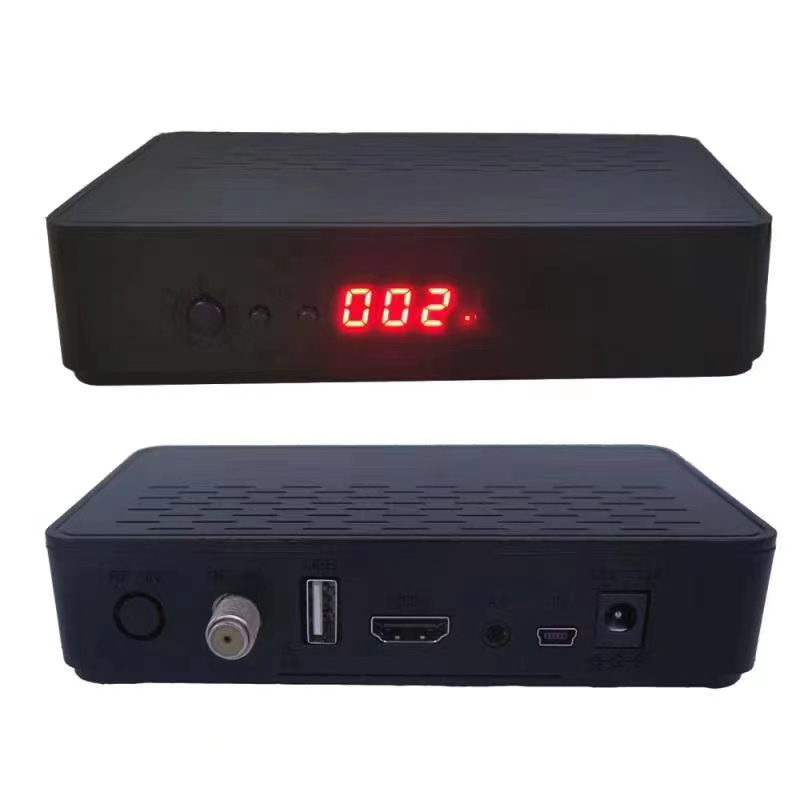

Connectivity
Video: HDMl v1.4a
RCA out (CVBS, AudioL/R)
USB: 1xUSB2.0 host device
Tuner & Demodulator
lnput Frequency: 950MHz-2150MHz
LNB Power: 13V/18v
Demodulator QPSK,8PSK,16APSK&32APSK
Symbol rate : 1.0~45MSps

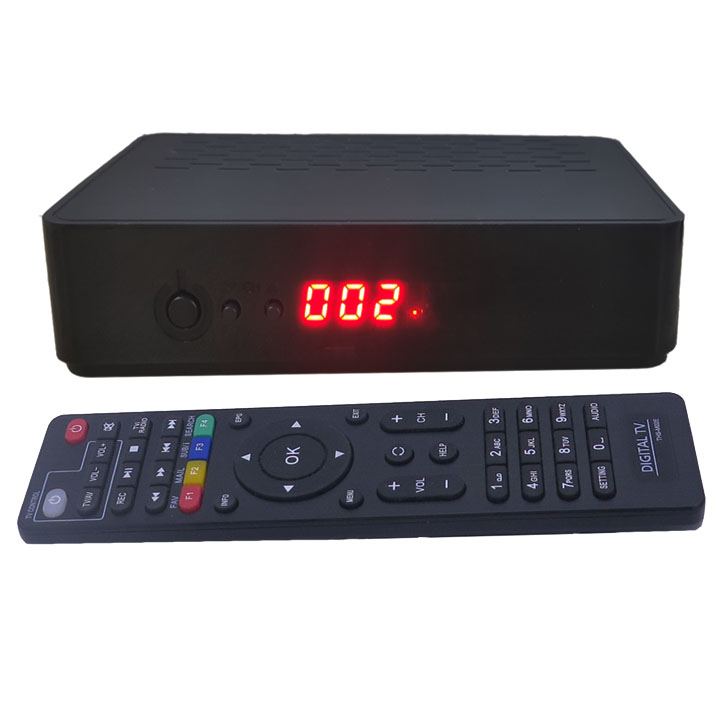

Front panel
Display: 3 LED lndicator, Power Red LED, Lock Green LED
Button: CH+，CH-
Video Decoding
MPEG4 Simple Profile,Advanced Simple Profile @Level 5 without GMC/Data Partitioning/Reversible VLC
HEVC/H.265 MP@level 4.0 High tier (M88C S8051T only )
MPEG-2 MP@HL
AVS Jizhun profile @ L6.0/4.0/2.0-
AVS Broadcast profile @L6.0/L4.0
H.264 BP(with no ASO/FMO),MP& HP@ L4.1
Setup environment
Function temperature:0-40 degree Celsius
Power consumption: Max 10w
Voltage: 12V/1A
Audio Decoding
MPEG-1/2 Layer I/II/III
MPEG-2/4 LC-AAC, MPEG-4 HE-AAC@Level 4
Dolby AC3/AC3+(Optional)
Dimensions
W x D x H(mm):140*83*32
Weight(kg):0.55
Packaging dimension(mm):245*165*52
Weight include packaging(kg):0.6
HDISD Video Encoding
HD formats : 480p, 576p, 720p,1080i/p.
SD formats: NTSC 480i,PAL 576i including VBl function

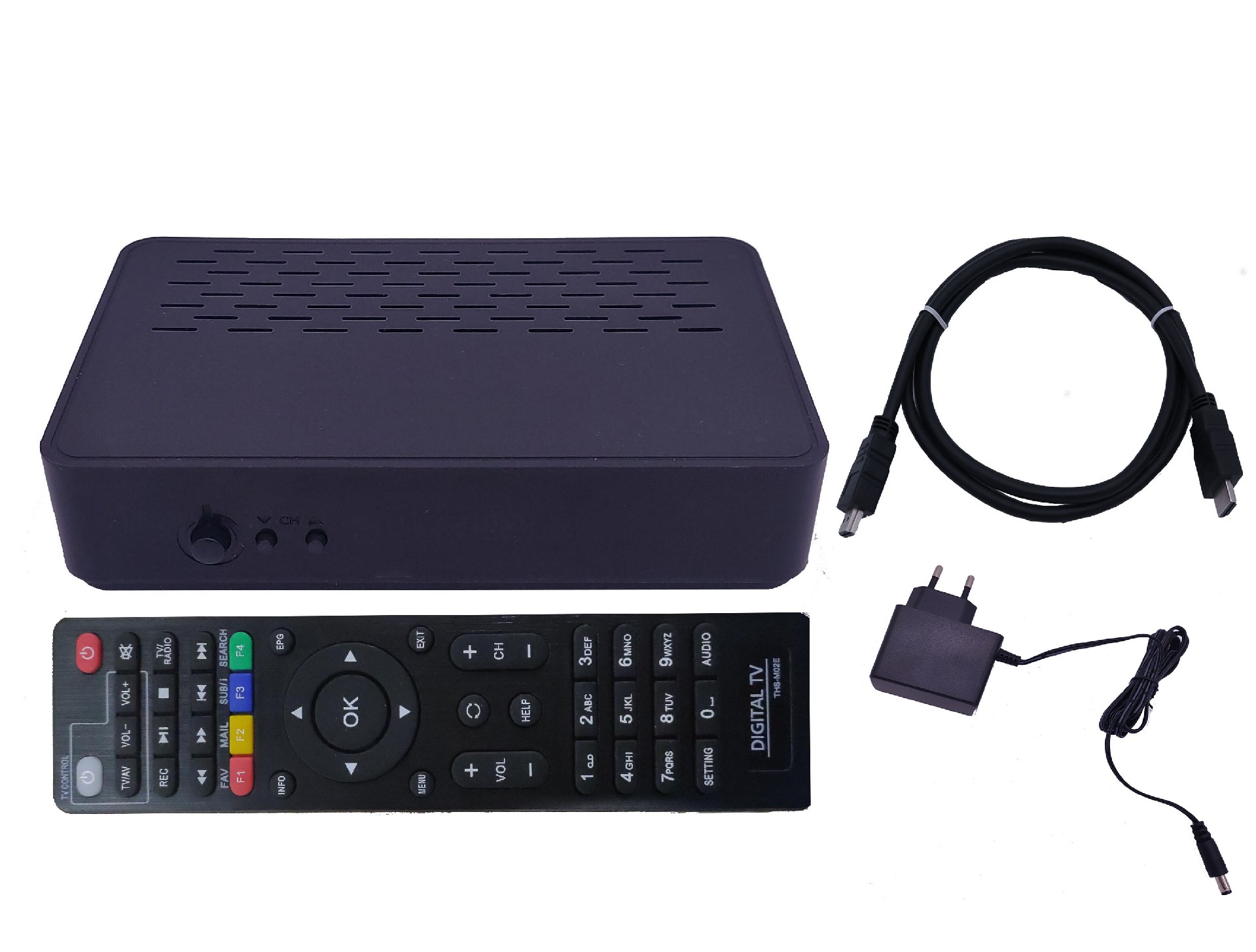

Proposed Accessories
Remote control unit
RCA Connect Cable OR AAA Batteries
AAA Size Batteries
Core System
Processor : M88cs8001S/M88Cs8001T /M88cs8051T (High-performance dual MIPS CPu)
Broadcasttuners: 1 DVB-S2
Memory: 8MB Flash SOC Embedded 64MB or 128MB DDR
STB up grade: Through OTA or USB Disk
Connectivity
Video: HDMl v1.4a
RCA out (CVBS, AudioL/R)
USB: 1xUSB2.0 host device
Tuner & Demodulator
lnput Frequency: 950MHz-2150MHz
LNB Power: 13V/18v
Demodulator QPSK,8PSK,16APSK&32APSK
Symbol rate : 1.0~45MSps
Front panel
Display: 3 LED lndicator, Power Red LED, Lock Green LED
Button: CH+，CH-
Video Decoding
MPEG4 Simple Profile,Advanced Simple Profile @Level 5 without GMC/Data Partitioning/Reversible VLC
HEVC/H.265 MP@level 4.0 High tier (M88C S8051T only )
MPEG-2 MP@HL
AVS Jizhun profile @ L6.0/4.0/2.0-
AVS Broadcast profile @L6.0/L4.0
H.264 BP(with no ASO/FMO),MP& HP@ L4.1
Setup environment
Function temperature:0-40 degree Celsius
Power consumption: Max 10w
Voltage: 12V/1A
Audio Decoding
MPEG-1/2 Layer I/II/III
MPEG-2/4 LC-AAC, MPEG-4 HE-AAC@Level 4
Dolby AC3/AC3+(Optional)
Dimensions
W x D x H(mm):140*83*32
Weight(kg):0.55
Packaging dimension(mm):245*165*52
Weight include packaging(kg):0.6
HDISD Video Encoding
HD formats : 480p, 576p, 720p,1080i/p.
SD formats: NTSC 480i,PAL 576i including VBl function
Proposed Accessories
Remote control unit
RCA Connect Cable OR AAA Batteries
AAA Size Batteries
